As connected devices shrink, the audible alert component is under more pressure than ever. Smart home sensors, wearable health trackers, portable patient monitors and disposable medical tools all demand clear, reliable sound—yet leave almost no room on the PCB. The compact SMD piezo buzzer has become the default answer for engineers who need sub-5mm acoustic modules without sacrificing SPL, power efficiency or SMT manufacturability.

Changzhou Shenghui Electronic, an electro-acoustic manufacturer since 1996, builds ultra-thin SMD piezo buzzers in profiles as low as 1.7 mm and footprints from 9×9 mm down to micro packages, helping OEMs hit aggressive size targets in smart home and medical designs.

Why Sub-5mm Alert Modules Are Now a Design Requirement

Three forces are compressing buzzer specs:

1. Enclosure miniaturization – smart door locks, pill remiders and glucose meters leave only 2–3 mm of internal clearance.

2. Battery constraints – CR2032, coin-cell and small Li-Po packs cannot tolerate electromagnetic coil current.

3. Automated assembly – everything must survive reflow, tape-and-reel feeding and pick-and-place without manual tweaking.

A traditional through-hole buzzer simply does not fit. Even many standard SMD magnetic parts are too tall. The compact SMD piezo buzzer removes the coil, uses a thin ceramic element and delivers audible output in a flattened sealed package.

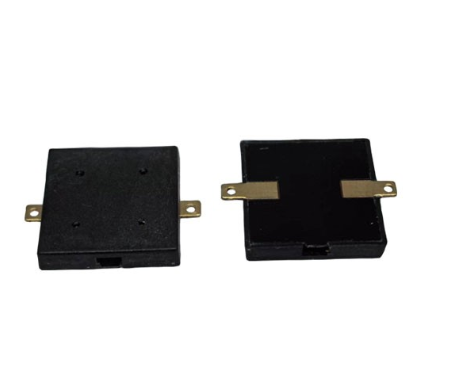

Shenghui’s SMD piezo lineup includes 9.0×9.0×1.8 mm, 11.0×9.0×1.7 mm, 12×12×3.0 mm and 13×13×2.5 mm variants, with 3Vp-p / 5Vp-p drive, 65–80 dB SPL at 10 cm and resonant points around 4–5.2 kHz.

Smart Home: Tiny Alerts That Actually Get Heard

In smart home gear, the buzzer competes with fans, TVs, kitchen noise and closed plastic shells.

Typical use cases:

• Door/window sensors: tamper alert, low-battery chirp

• Smart locks: lock/unlock confirmation, error tone

• Thermostats & hubs: pairing prompt, fault warning

• Leak/ smoke detectors: localized secondary alert in slim modules

For these products, a compact SMD piezo buzzer at 3Vp-p or 5Vp-p driven by MCU PWM gives:

• 70–80 dB output in the 2–5 kHz sensitive band

• Microamp-to-few-mA current draw

• Zero EMI near Wi-Fi/BLE/Zigbee radios

• Consistent tone across thousands of units

Because piezo elements are capacitive, idle current is near zero. That matters for always-on IoT nodes that sleep most of the time. A 11×9×1.7 mm part can sit at the PCB edge, fire a 4 kHz pulse, and wake the user without draining the cell.

Shenghui supports both passive (externally driven) and active (DC-driven) SMD piezo types, so smart-home firmware teams can choose fixed-tone simplicity or multi-pitch programmability from one supplier.

Portable Medical Gear: Clear, Compliant, Low-Risk Sound

Medical alert design is less forgiving. A missed beep can mean a missed dose, a disconnected sensor or an unacknowledged alarm.

Portable medical applications include:

• Blood glucose meters

• Pulse oximeters

• Infusion pumps

• Wearable ECG patches

• Hearing-assist remotes

• Telehealth hubs

Here, the compact SMD piezo buzzer wins on five points:

1. Low power – extends runtime on patient-carried devices.

2. Thin profile – fits behind displays or inside handheld shells.

3. No magnetic field – safe near sensors, leads and RF links.

4. Tone control – passive piezo lets firmware create “info / warning / critical” patterns.

5. Batch stability – critical for IEC 60601-1-8 alarm re-certification across lots.

A 12×12×3.0 mm passive piezo at 3Vp-p, 4 kHz, 75 dB is a common starting point. For thinner wearables, the 11×9×1.7 mm, 5Vp-p, 72–75 dB part often replaces larger magnetic buzzers while improving layout freedom.

Shenghui’s medical-grade parts are built under ISO-based quality control, with SPL, frequency, capacitance and reflow robustness documented per model—so OEMs can validate once and scale.

Engineering Rules for Sub-5mm Piezo Integration

When you drop a micro piezo buzzer into a tight enclosure, follow these guidelines:

1. Place it at the acoustic opening

Sound exits the top vent or front slot. Avoid burying the buzzer under a battery or metal shield.

2. Drive near resonance

Passive piezo parts peak at their resonant frequency (often 4.0–4.1 kHz). A square wave close to resonance gives maximum SPL at minimum current.

3. Watch the drive voltage

Shenghui SMD piezo buzzers support wide ranges—e.g. 1–25 Vp-p depending on model. Match the MCU IO or FET driver to the rated Vp-p, and never leave DC across the element.

4. Simulate the housing, not just the datasheet

A 75 dB part in free air may measure 60 dB inside a sealed case. Prototype with the real shell, then tune port holes or back-chamber volume.

5. Control reflow stress

Piezo elements are moisture-sensitive. Follow the recommended reflow curve, baking and MSL handling from the manufacturer.

Compact SMD Piezo vs Magnetic in Thin Designs

For sub-5mm stacks, piezo is usually the cleaner path.

Shenghui Advantage for Miniaturized Alert Modules

• 25+ years of electro-acoustic manufacturing since 1996

• Ultra-thin SMD piezo portfolio: 1.7 mm / 1.8 mm / 2.5 mm profiles

• Custom tuning: SPL, frequency, voltage, pad layout, tape size

• Consistency: in-house ceramic control, acoustic test per lot

• Compliance: RoHS / REACH awareness, ISO-quality process

• One-stop: SMD piezo + magnetic + active/passive from one factory

That means a smart-home startup and a medical OEM can qualify one buzzer platform, then scale from prototype to 100k+ units without re-sourcing.

Spec Starter for Your Next Module

If you are designing a compact alert module, start with this baseline:

• Package: 11×9×1.7 mm or 12×12×3.0 mm SMD piezo

• Type: passive (external drive) or active (DC)

• Voltage: 3Vp-p / 5Vp-p

• Frequency: 4.0–4.1 kHz

• SPL: ≥70 dB @ 10 cm

• Current: ≤5 mA

• Reflow: lead-free compatible, tape-and-reel

From there, Shenghui engineers can adjust dimensions, seal style, lead finish and tone curve to your enclosure.

Conclusion

The compact SMD piezo buzzer is no longer a compromise—it is an enabler. It lets smart home products stay slim and silent until needed, and lets portable medical devices deliver compliant, recognizable alarms without bloating the BOM or draining the battery.

For OEMs building the next generation of connected health and home devices, sourcing directly from an experienced manufacturer like Changzhou Shenghui ensures the alert module stays small, loud enough, low-power and consistent at scale.

Request samples, SPL curves and footprint drawings at:

https://www.shenghui.com/Buzzer.html
